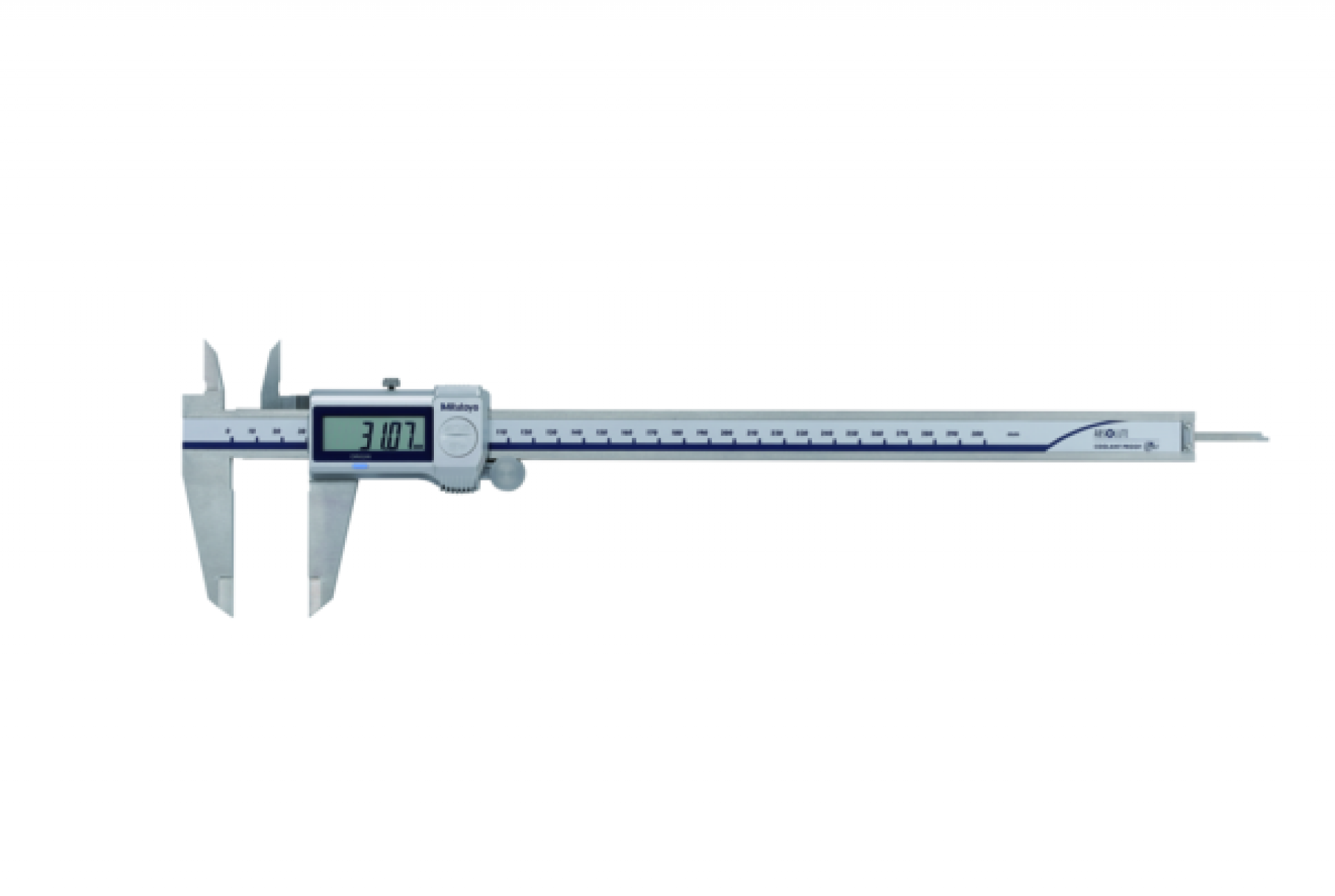

Thước cặp điện tử 0-300mm Mitutoyo, 500-714-20
-
Mã sản phẩm: 500-714-20
-
Tình trạng: Còn trong kho
-
Liên hệ
Digital ABS Caliper CoolantProof IP67 0-300mm, Blade, Thumb Roller Item number: 500-714-20 * Chi tiết vui lòng xem catalogue
Description
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
- Extraordinarily long battery life
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Range:
|
0 - 300 mm
|
Depth bar:
|
flat
|
Accuracy:
|
±0,03 mm
|
Data output:
|
Yes
|
Mass:
|
345 g
|
L:
|
404 mm
|
A:
|
22 mm
|
B:
|
27.5 mm
|
C:
|
19.8 mm
|
D:
|
64 mm
|
H:
|
20 mm
|
Max. response speed:
|
Unlimited
|
Display:
|
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
|
Delivered:
|
In a case, including 1 battery
|
Battery life:
|
approx. 1 year under normal use
|
ORIGIN (ABS-Zero):
|
Yes
|
Auto Power OFF
after 20 min. non use: |
Yes
|
Low voltage alarm:
|
Yes
|
Digital step:
|
0,01 mm
|
