Panme Điện Tử Đo Ngoài Đo Thành Ống, Digital Tube Micrometer, Spherical Anvil Inch/Metric, 3-4", IP65, 395-354-30
-
Product Code: 395-354-30
-
Availability: In Stock
-
Contact
Digital Tube Micrometer, Spherical Anvil Inch/Metric, 3-4", IP65 Item number: 395-354-30 Panme đo ống điện tử này cho phép bạn đo độ congcác bề mặt như độ dày thành ống, ổ trục và vòng.Với bán kính mặt đe / trục chính: cacbit R = 4 mm.
Description
This Digimatic Tube Micrometer allows you to measure curved
surfaces such as the wall thickness of tubes, bearings and rings.
With radius of anvil/spindle faces: carbide R=4 mm.
|
Accuracy:
|
±0,00015"
|
|
Flatness:
|
0,000012"
|
|
Mass:
|
625 g
|
|
Measuring surfaces:
|
Carbide-tipped, micro-lap finish
|
|
Maximum Permissible Error J MPE:
|
±0,00015"
|
|
Battery life:
|
Approx. 2,4 years
|
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key, 1 battery
|
|
Digital step:
|
0,00005"/0,001 mm
|
|
HOLD:
|
Yes
|
|
ORIGIN:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Data output:
|
Yes
|
|
Function lock:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Inch/Metric
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,635 mm
|
|

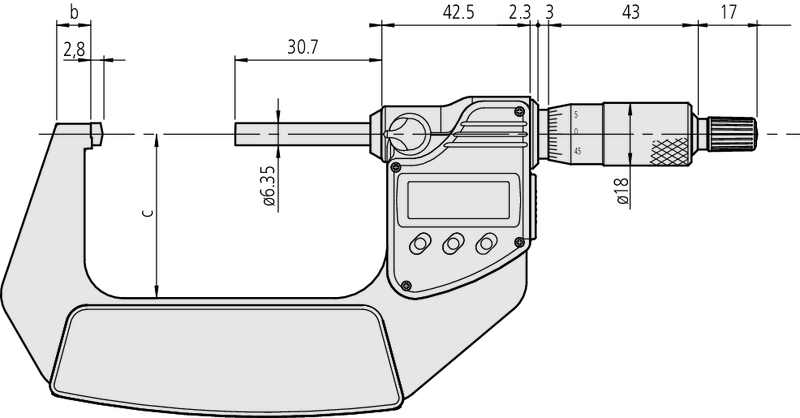

D:
|
20 mm
|
|
b:
|
14 mm
|
|
c:
|
60 mm
|
