Panme Điện Tử Đo Ngoài Đầu Nhọn, Screw Thread Micrometer 50-75mm, 3,5-5mm/8-5TPI, 125-114
-
Product Code: 125-114
-
Availability: In Stock
-
Contact
Screw Thread Micrometer 50-75mm, 3,5-5mm/8-5TPI Item number: 125-114 Panme đo ren này có một trục cố định, cung cấp các lợi ích sau: - Loại trục cố định. - Trực tiếp đo được ra đường kính bước ren, không cần tính toán.
Description
This Screw Thread Micrometer has a fixed anvil, offering the following benefits:
- Fixed anvil type.
- It directly indicates screw pitch diameter, meaning no need for calculation.
|
Accuracy:
|
±(2+L/75) µm, L = max. range (mm)
|
|
Mass:
|
260 g
|
|
Range:
|
50 - 75 mm
|
|
Delivered:
|
Including box, setting standard 60° (from 25 mm upward), key
|
|
Thread to be measured (Metric/Unified):
|
3,5-5 mm / 8-5 TPI
|
|
Accuracy:
|
±(2+L/75) µm
L = max. range (mm) |
|
Graduation:
|
0,01 mm
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,635 mm
|
|
Spindle feed error:
|
3 µm
|
|
Measuring force:
|
5 - 10 N
|
|
Graduation:
|
0,01 mm
|
|

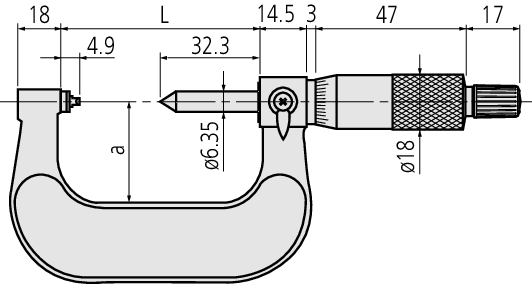

a:
|
49 mm
|
|
L:
|
87 mm
|
